Alterations & Additions
Complete structural engineering documentation package for residential alterations and additions. The project includes comprehensive structural notes, footing plan with detailed section drawings, and 3D visualization of the steel frame structure featuring mass concrete piers, steel posts, floor beams, and cross bracing.
N3
Wind Class
M
Site Class
1.5kPa
Live Load
Project Features
Project Drawings
Complete set of structural engineering drawings including detailed structural notes, footing plan with sections, and 3D visualization.

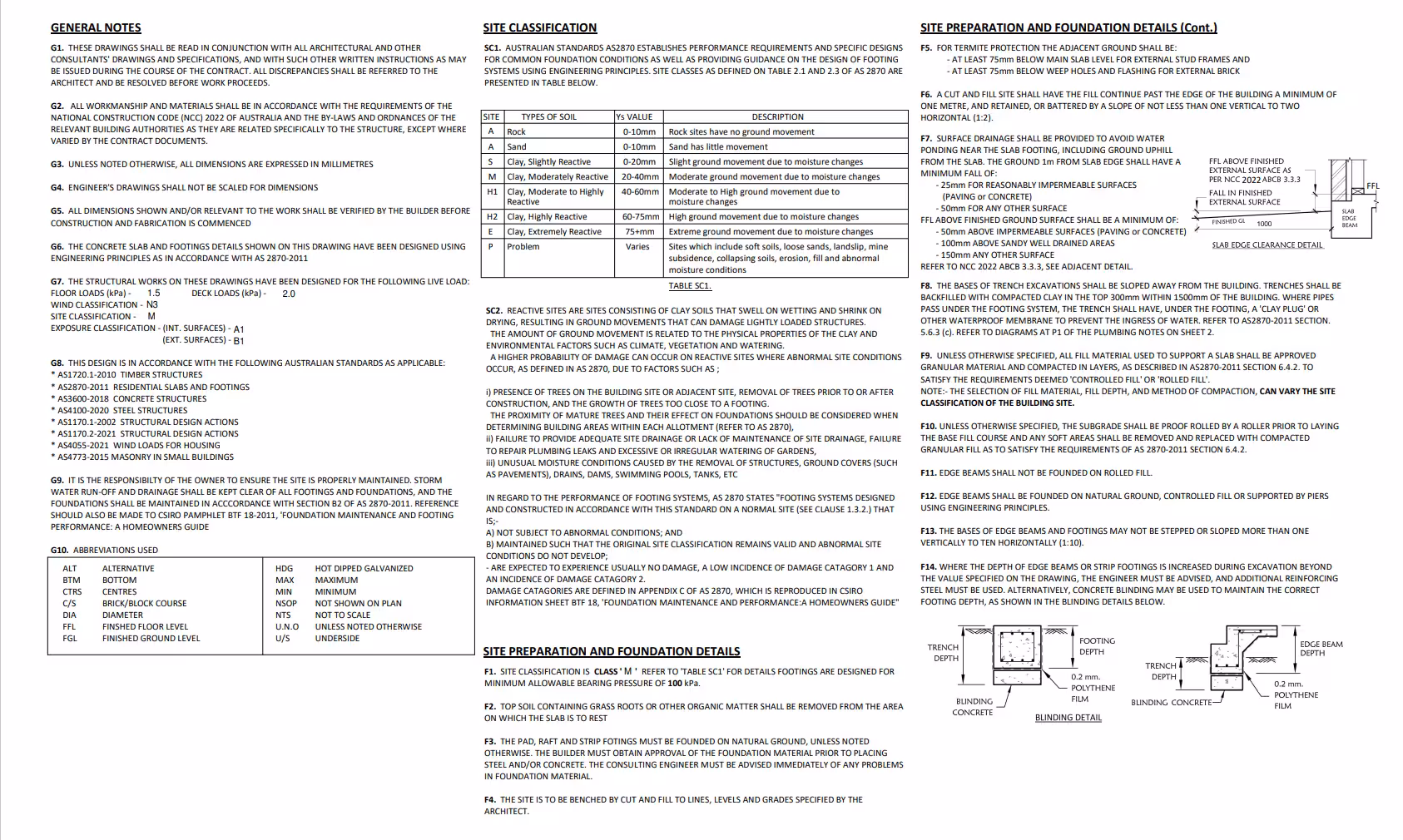

Structural Notes 1
Structural Notes 1 - General notes, site classification, and foundation details

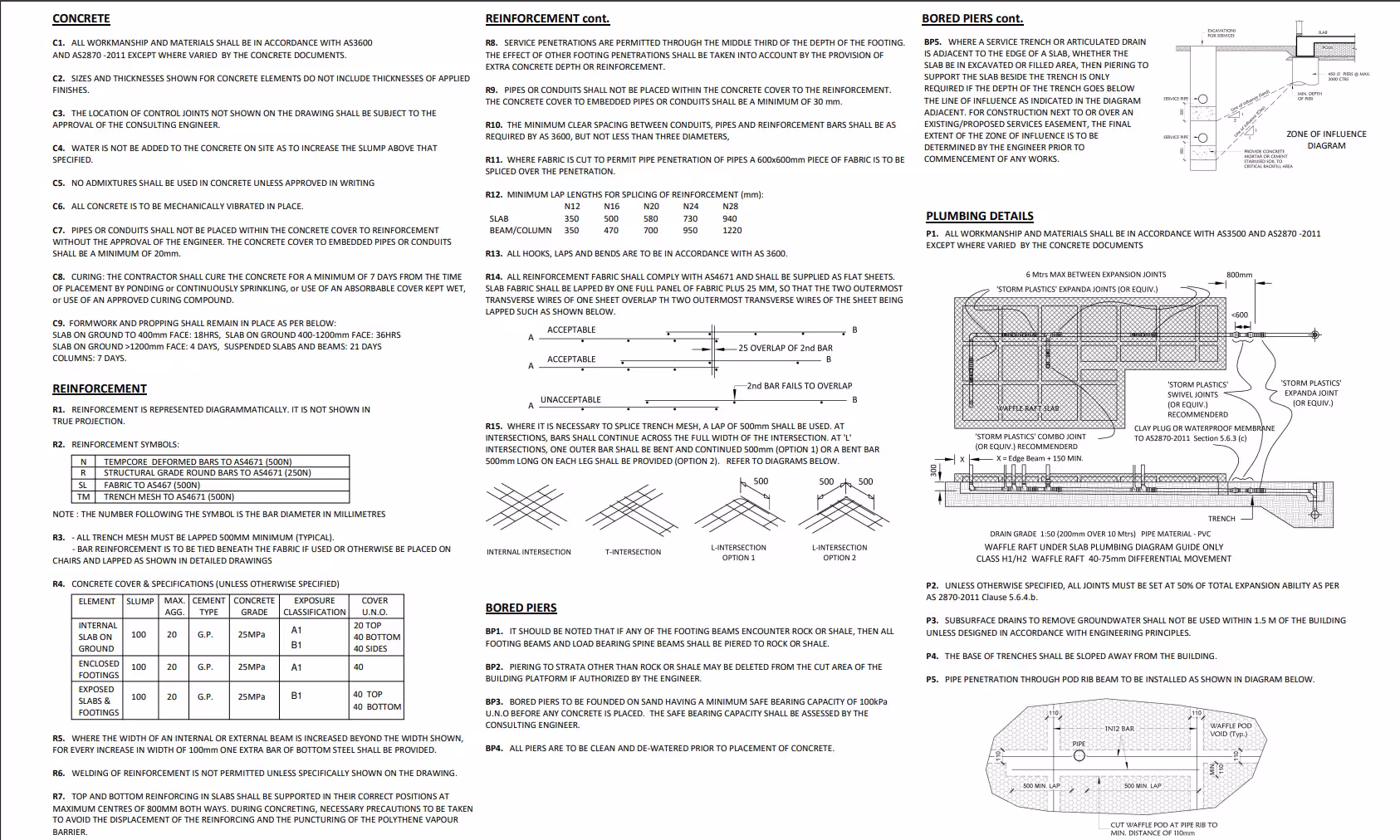

Structural Notes 2
Structural Notes 2 - Concrete, reinforcement, and bored piers specifications
Footing Plan & Section A
Footing Plan and Section A with pier layout and connection details
3D View
3D isometric view of steel frame structure with piers and bracing
Structural Specifications
Footings
- Type: Mass Concrete Piers
- Size: 600mm diameter
- Depth: 1000mm
- Strength: 40MPa
Posts
- Type: SHS Steel Posts
- Size: 125x5mm
- Coating: Bitumen coat 200mm above pier
Beams
- Type: Floor Beams
- Size: 200UB22.2
Bracing
- Type: Cross Bracing
- Size: M20 HDG Rod
- Finish: Hot Dipped Galvanized
Concrete
- Slump: 100mm
- Max Aggregate: 20mm max
