Proposed Dwelling Slab & Carport
Complete structural engineering documentation for a proposed dwelling with slab-on-ground foundation and attached carport. Features comprehensive footing plans, steel framing details, cross-sections, and 3D structural visualization.
N2
Wind Class
M
Slab Class
P
Site Class
Project Features
Project Drawings
Complete set of structural drawings including footing plan, steel framing, cross-sections, connection details, and structural notes.
Structural Notes 1
General notes, bored pier notes, and concrete footing notes

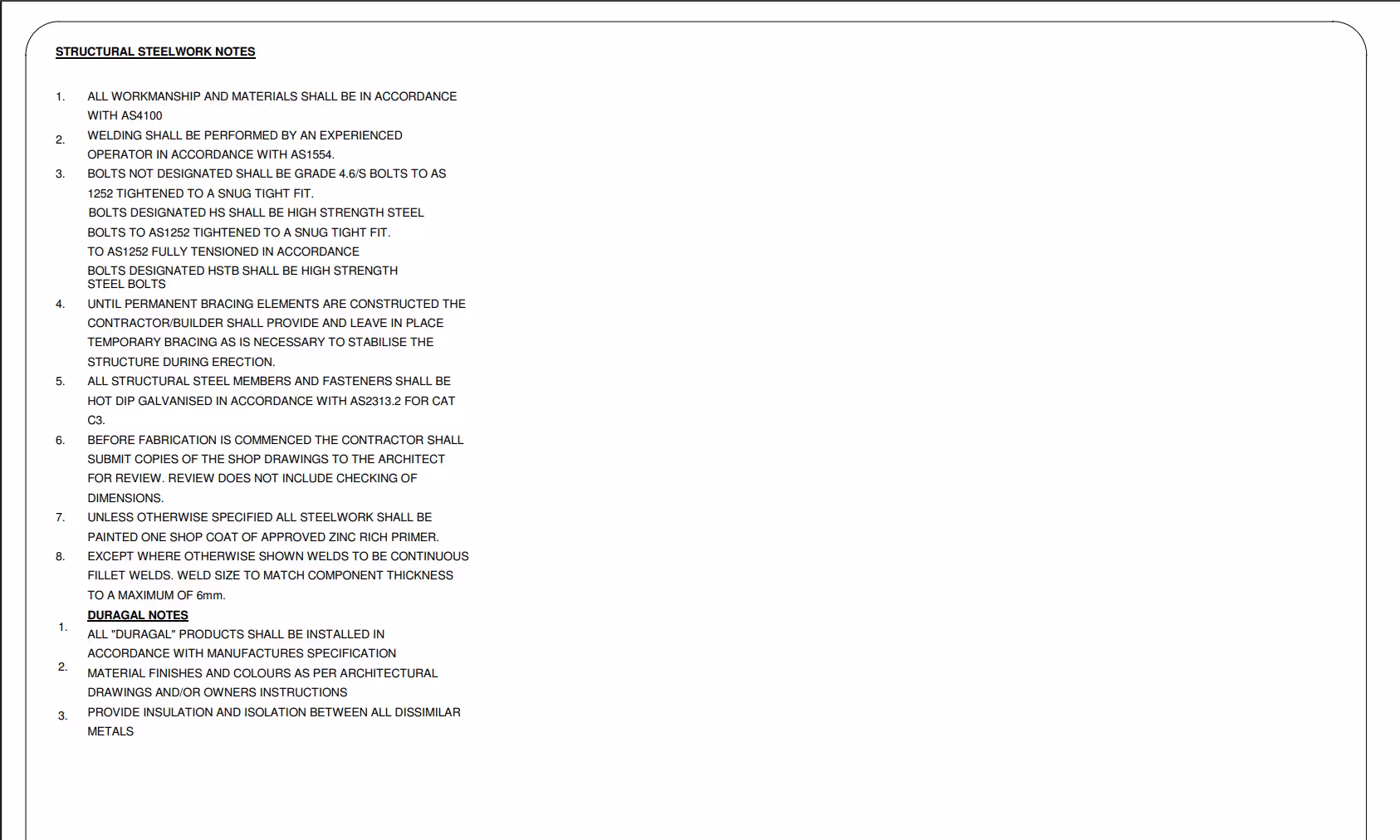

Structural Notes 2
Structural steelwork notes and Duragal notes
Footing Plan
Footing plan showing slab layout, edge beams, and pier locations
Steel Framing Plan
Steel framing plan with beam and column schedule
Sections A - F
Cross-sections A-F showing beam and slab details
Section G & Details
Beam connection and steel connection details

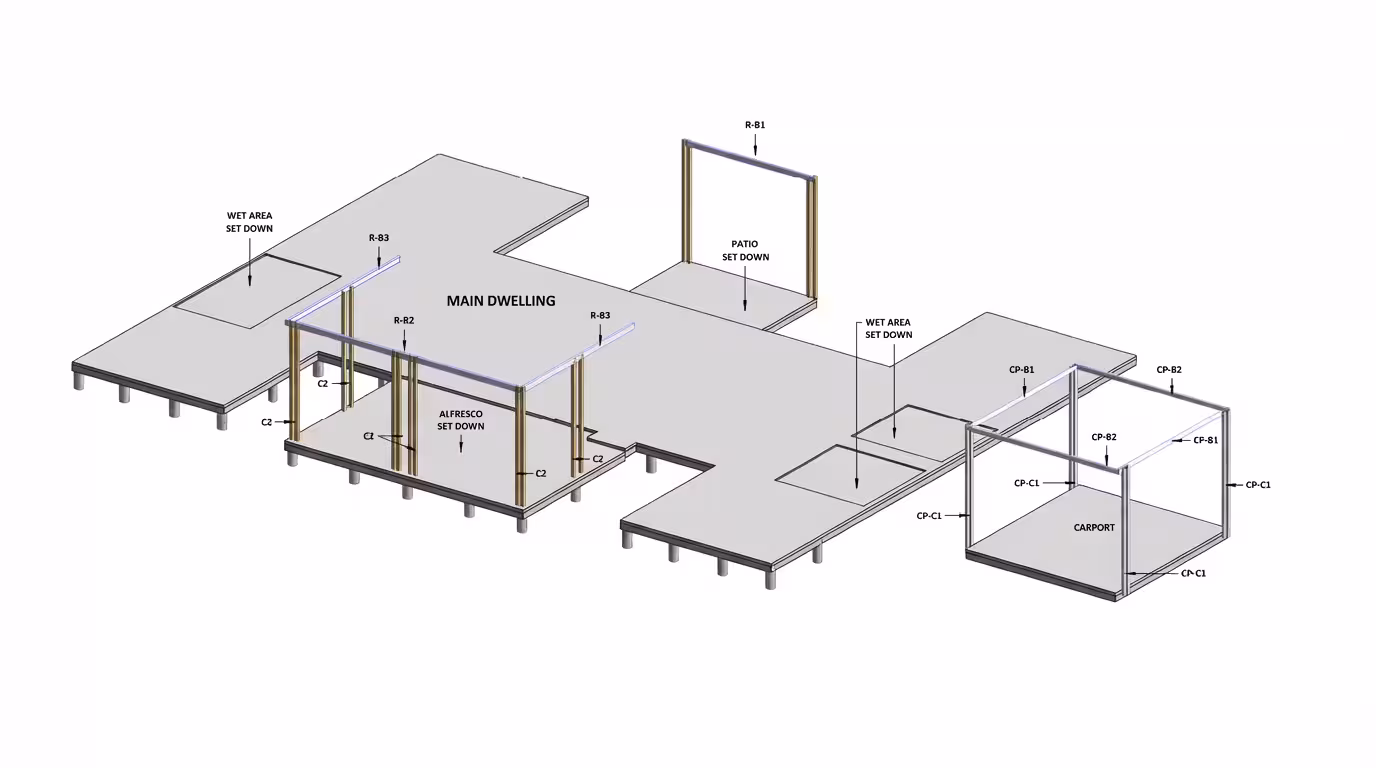

3D View
3D isometric view of dwelling and carport structure
Technical Specifications
Slab
- Thickness: 100mm
- Mesh: SL92
- Concrete: 32MPa
Piers
- Diameter: 300mm
- Depth: 300mm min.
- Concrete: 20MPa
Beams
- Edge: EB1/EB2
- Internal: IB1/IB2
- Reo: 3N12
Steel Framing
- Roof: 150-180 PFC
- Carport: 150x50x4 RHS
- Columns: 100x4 SHS
Design Loads
- Floor: 1.5kPa
- Deck: 2.0kPa
