Steel Detailing
Rural Shed Structure
Complete structural documentation package for a rural shed structure featuring portal frame design with lean-to section. The project includes comprehensive site planning, footing and framing details, roof design, and full elevation drawings for all four sides.
13m x 16m x 4m
Dimensions
208m²
Floor Area
10A
Build Class
Project Features
Portal frame construction
Lean-to extension (4m)
Corrugated ironstone roof
Trimdek gully wall cladding
Gliderol roller doors
AMIA sliding windows
10° main roof pitch
5° lean-to roof pitch
Documentation
Project Drawings
Complete set of structural drawings including site plan, footing details, framing plan, roof layout, and all elevation views.
Site Plan
Site Plan showing property layout and setbacks
Footing & Framing Plan
Footing and Framing Plan details

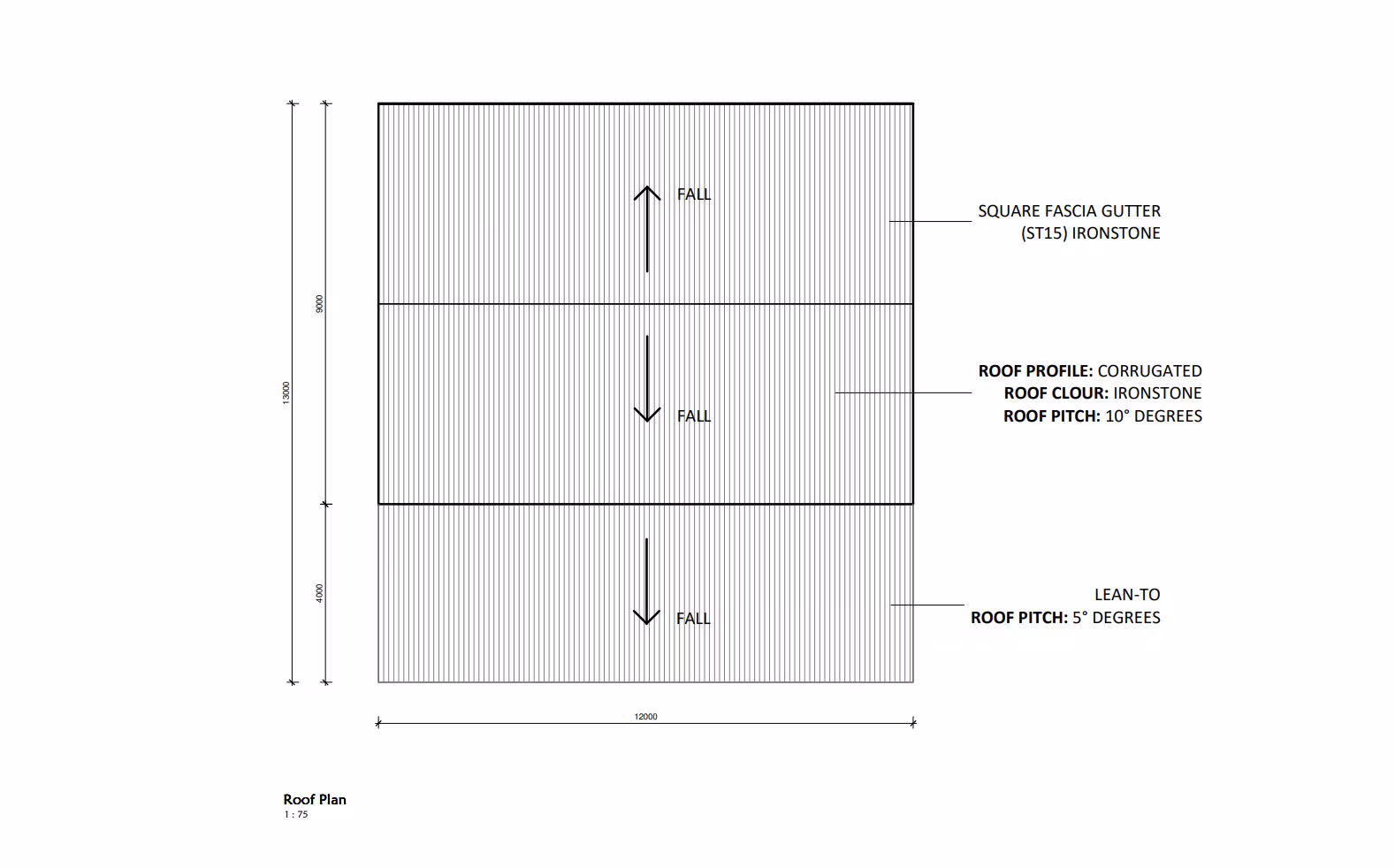

Roof Plan
Roof Plan with fall directions
North & South Elevations
North and South Elevations
East & West Elevations
East and West Elevations
Materials & Specifications
Roof
- Profile: Corrugated
- Color: Ironstone
- Pitch: 10°
Walls
- Profile: Trimdek
- Color: Gully
Gutters
- Type: Square Fascia (ST15)
- Color: Ironstone
Doors
Gliderol Series 'AA' Range Roller Doors
Windows
AMIA SLD XO 4MM CLR
Need Similar Documentation?
I provide complete structural drafting packages for sheds, garages, and rural structures.
