Waffle Pod Slab & Timber Deck
Complete structural engineering documentation for proposed alterations and additions featuring waffle pod slab foundation with integrated timber deck, fibreglass pool, and comprehensive cross-section details.
P(H2)
Site Class
N1
Wind Class
1.5kPa
Floor Load
2.0kPa
Deck Load
Project Features
Project Drawings
Complete set of structural drawings including footing plan, 3D view, sections A-F, and detailed notes for waffle pod slab and timber deck construction.
Structural Notes 1

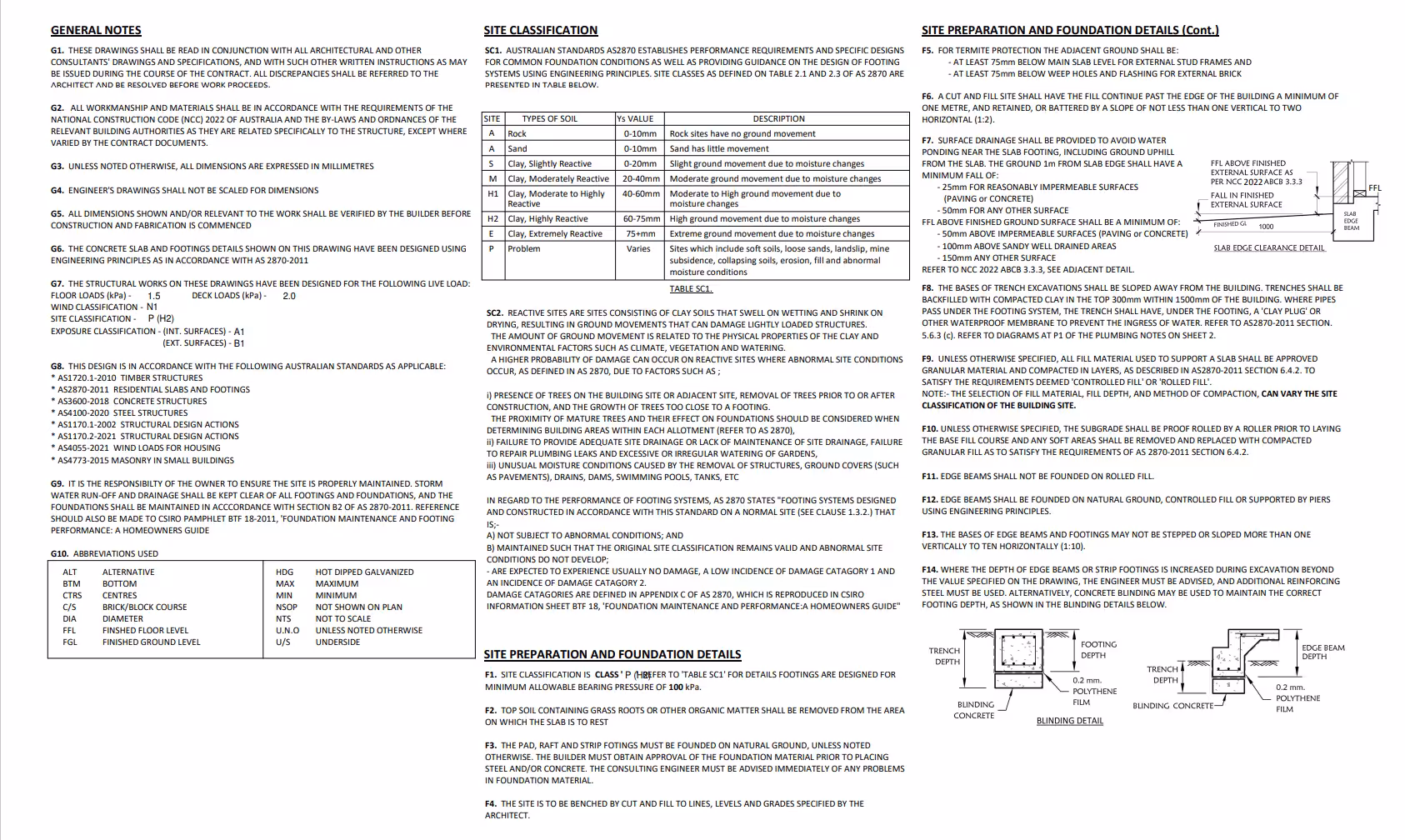

Structural notes page 1 with general notes and site classification
Structural Notes 2
Structural notes page 2 with concrete, reinforcement, and bored piers details
Footing Plan & 3D View
Footing plan and 3D view showing waffle pod layout and timber deck structure
Sections A - D
Cross-section details A through D showing edge beams and internal ribs
Zone of Influence (Sections E & F)
Sections E and F showing zone of influence and sewer pipe clearances
Section G & Details
Section G and details showing timber post connection and wet area set downs
Materials & Specifications
Slab Details
- Thickness: 100/125mm
- Pod Size: 225/300mm
- Concrete: 32MPa
- Mesh: SL82
Piers & Posts
- P1 Piers: 450mm dia, 500 deep
- P2 Piers: 300mm dia, to pool
- Concrete: 25MPa
- Posts: 140x140 HWD
Timber Framing
- Floor Beam (FB1): 200x50 F14
- Floor Joist (FJ1): 200x50 @ 450 c/c
- Veranda Beam (VB1): 150x50 F14
- Veranda Beam (VB2): 250x50 F14
